Token Gated Rooms

Token Gated Rooms

In this guide we will create token gated room that only allows users with a specific token to join.

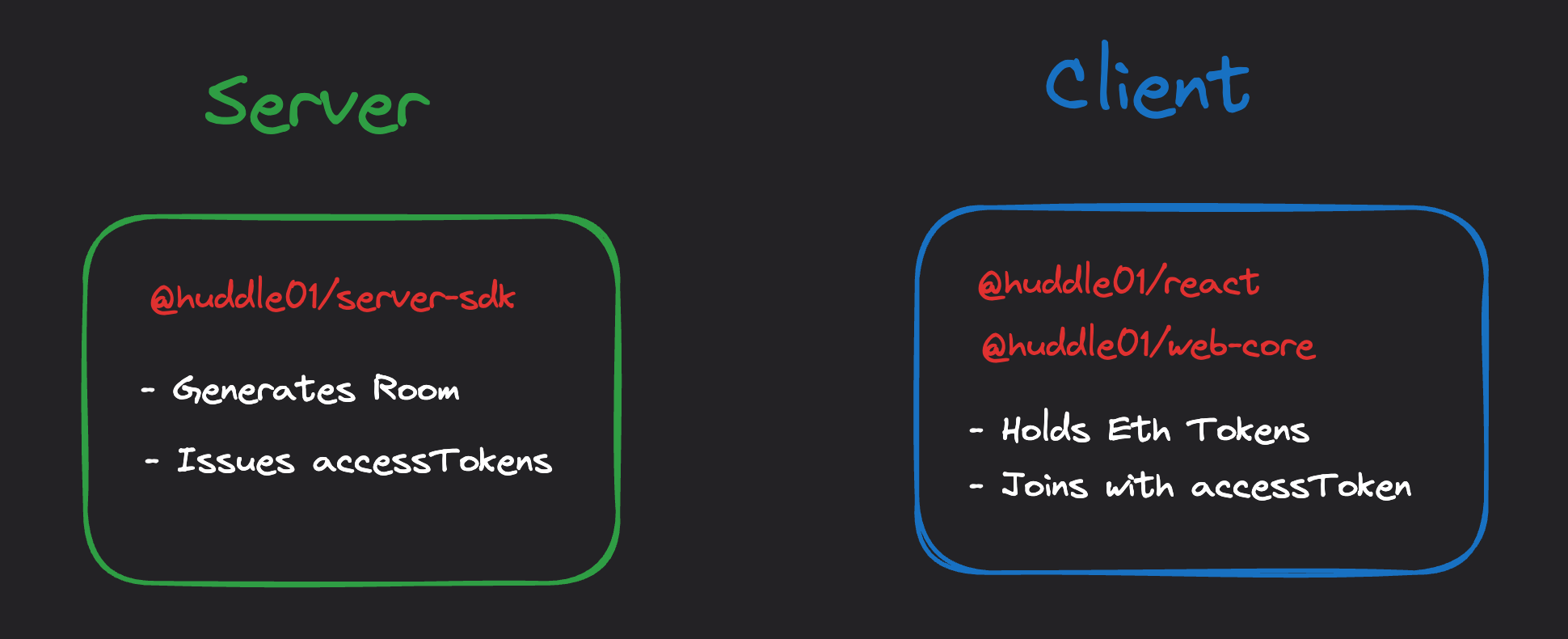

We will create a token gated room using Create Room API and Room Details. Once we get token gating details we will use to verify whether the user has the token or not, if user has token then we will generate access token and allow user to join room.

Create Token Gated Room

Create a token gated room using Create Room API. Let's create a server component that will create a token gated room.

"use server";
interface CreateRoomProps {
  tokenGateWith: string;
  chain: string;
  contractAddress: string;
export const createRoom = async ({
}: CreateRoomProps) => {
  const response = await fetch("", {
    method: "POST",
    body: JSON.stringify({
      title: "Huddle01 Room",
      tokenType: tokenGateWith,
      chain: chain,
      contractAddress: [contractAddress],
    headers: {
      "Content-type": "application/json",
      "x-api-key": process.env.API_KEY!,
    cache: "no-cache",
  const data = await response.json();
  const { roomId } = await;
  return roomId;

Signing message to verify wallet

We will use wagmi (opens in a new tab) and viem (opens in a new tab) to sign message and verify wallet.

import { useSignMessage } from "wagmi";
import { config } from "@/utils/config";
import { useState } from "react";
const [expirationTime, setExpirationTime] = useState(0);
const [message, setMessage] = useState("");
const { signMessageAsync } = useSignMessage({
    config: config,
    mutation: {
        onSuccess: (data) => {
        // We will implement this function in later steps
    className="bg-blue-500 p-2 mx-2 rounded-lg"
    onClick={async () => {
    const time = {
        expiresAt: + 1000 * 60 * 5,
    const msg = `Click "Sign" only means you have proved this wallet is owned by you.
We will use the public wallet address to fetch your NFTs.
This request will not trigger any blockchain transaction or cost of any gas fees.
Account: ${address}
Issued At: ${new Date(time.issuedAt).toLocaleString()}
Expires At: ${new Date(time.expiresAt).toLocaleString()}`;
    await signMessageAsync({
        message: msg,
    Sign In with Wallet

Creating API to authenticate user

We will create an API that will verify the signature, get room-details and verify if user holds the token or not. If user holds the token then we will generate access token and allow user to join the room.

import { publicClient } from "@/utils/config";
import { AccessToken, Role } from "@huddle01/server-sdk/auth";
export const dynamic = "force-dynamic";
export async function POST(request: Request) {
  // Get data from request body
  const { roomId, signature, address, expirationTime, message } =
    await request.json();
  if (!roomId || !signature || !address) {
    return new Response("Incorrect request", { status: 400 });
  // Verify if signature is expired or not
  if (expirationTime < {
    return new Response("Signature expired", { status: 400 });
  // Call `room-details` API to get token gating details
  const roomDetailsResponse = await fetch(
      headers: {
        "x-api-key": process.env.API_KEY!,
  const roomDetails = await roomDetailsResponse.json();
  if (!roomDetails?.tokenGatingInfo) {
    return new Response("Room is not token gated", { status: 400 });
  // Set public client based on chain
  const publicClient =
    roomDetails.tokenGatingInfo.tokenGatingConditions[0].chain === "ETHEREUM"
      ? ethereumPublicClient
      : polygonPublicClient;
  // Verify signature
  const verify = await publicClient.verifyMessage({
  // If signature is verified then we will check if user holds the token or not
  if (verify) {
    const contractResponse = await publicClient.readContract({
      abi: [
          inputs: [{ name: "owner", type: "address" }],
          name: "balanceOf",
          outputs: [{ name: "", type: "uint256" }],
          stateMutability: "view",
          type: "function",
      functionName: "balanceOf",
      args: [address],
    const balance = Number(contractResponse);
    if (balance < 1) {
      return new Response("You don't hold token to join this room", {
        status: 400,
    } else {
      // If user holds the token then we will generate access token
      const accessToken = new AccessToken({
        apiKey: process.env.API_KEY!,
        roomId: roomId as string,
        role: Role.HOST,
        permissions: {
          admin: true,
          canConsume: true,
          canProduce: true,
          canProduceSources: {
            cam: true,
            mic: true,
            screen: true,
          canRecvData: true,
          canSendData: true,
          canUpdateMetadata: true,
      const token = await accessToken.toJwt();
      return new Response(token, { status: 200 });
  } else {
    return new Response("Incorrect signature", { status: 400 });

Now, let's call this API from client side once user signs the message.

import { useRoom } from "@huddle01/react/hooks";
const { state } = useRoom();
// Call this function in `onSuccess` callback of `useSignMessage`
const authenticateUser = async (signature: string) => {
  // Call `/token` API to verify signature and generate access token
  const tokenResponse = await fetch("/token", {
    method: "POST",
    headers: {
    "Content-Type": "application/json",
    body: JSON.stringify({
    roomId: params.roomId,
  const token = await tokenResponse.text();
  // Join room if `state` is `idle` which we get from `useRoom`.
  if (state === "idle")
      await joinRoom({
      roomId: params.roomId,

You're all set! Happy Hacking! 🎉

Thank you for following this guide till end. You can find the full source code here (opens in a new tab).
